5
ELEMENTS QUAD
Boom
length 6,7m HPSD 5Q |
Boom length 8,7m HPSD 5Q long | ||
| Design freq: | 27,555
MHz |
27,555
MHz |
|
| Gain: | 8,34
dBD |
9,08
dBD |
|
| F/B: | 30
dB |
32,02
dB (F/S 15dB) |
|
| Beam width: | 62,2
degrees |
57,8
degrees |
|
| Band width | 1,0
MHz |
0,7
MHz |
|
| Wire | AWG12 |
AWG12 |
|
| A= | 10.360mm |
10.360mm |
|
| B= | 10.800mm |
10.800mm |
|
| C= | 10.960mm |
10.960mm |
|
| D= | 11.200mm |
11.200mm |
|
| E= | 11.600mm |
11.520mm |
|
| F= | 1.400mm |
2.000mm |
|
| G= | 1.700mm |
2.100mm |
|
| H= | 1.800mm |
2.300mm |
|
| I= | 1.800mm |
2.100mm |

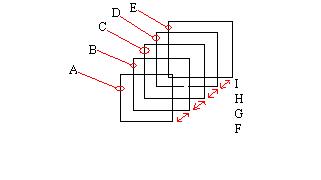

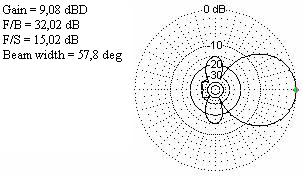

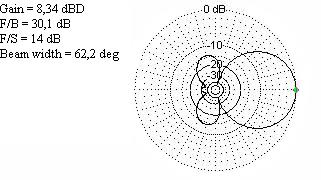

drawing 5 elements quad pattern 6,7m boom 5 el quad
pattern 5 el 8,7m boom
