6
ELEMENTS QUAD
6el quad cubex
Boom
length 10,5m HPSD 6Q short |
Boom length 12m HPSD 6Q long | ||
Design
freq: |
27,555
MHz |
27,555
MHz |
|
Gain: |
9,75
dBD |
10,0
dBD |
|
F/B: |
31
dB |
30,96
dB (F/S 15,4 dB) |
|
Beam
width: |
52,6
degrees |
51,0
degrees |
|
Band
width |
0,5
MHz |
0,7
MHz |
|
Wire |
AWG12 |
AWG12 |
|

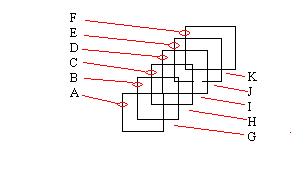

A= |
10.240mm |
10.240mm |
|
B= |
10.720mm |
10.720mm |
|
C= |
10.880mm |
10.880mm |
|
D= |
11.040mm |
11.040mm |
|
E= |
11.200mm |
11.200mm |
|
F= |
11.560mm |
11.560mm |
|
G= |
2.000mm |
2.700mm |
|
H= |
2.000mm |
2.700mm |
|
I= |
2.700mm |
2.400mm |
|
J= |
1.600mm |
2.000mm |
|
| K= | 2.200mm |
2.200mm |
6 elements

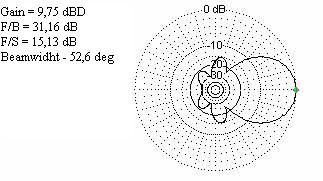

quad patern 10,5 m boom

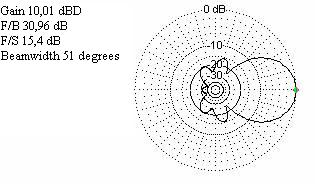

6 elements 12 m boom
