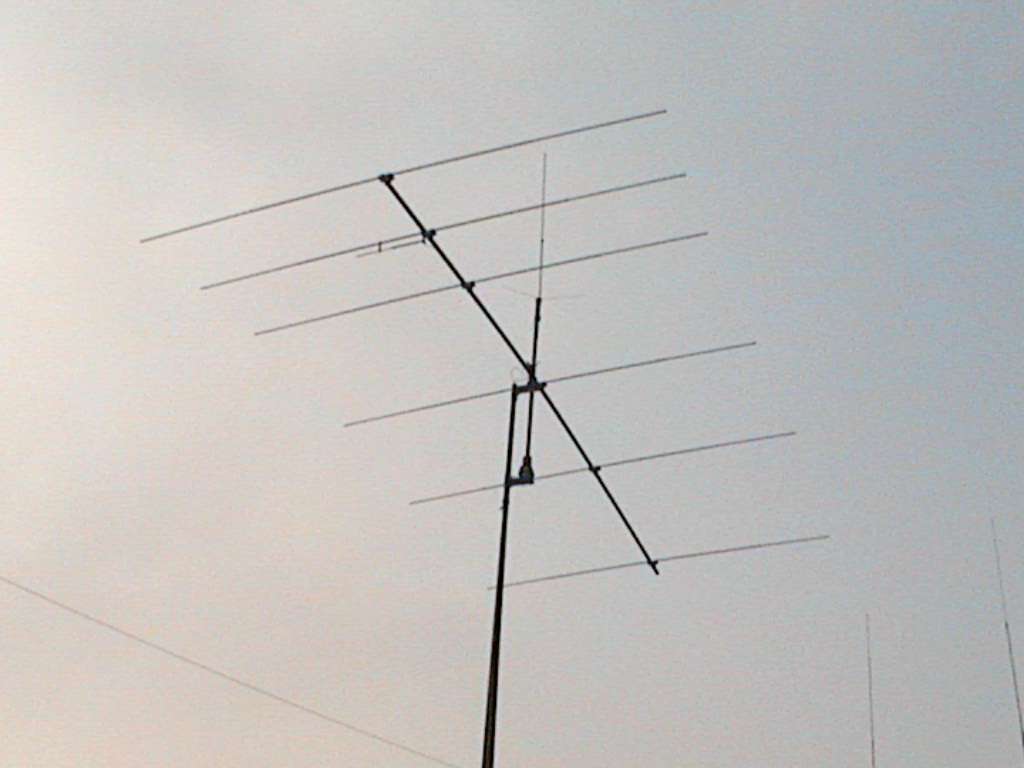

6 ELEMENTS YAGI
19LD266---------------------------------------------- 13OT001 ---------------------------------------------19AT091

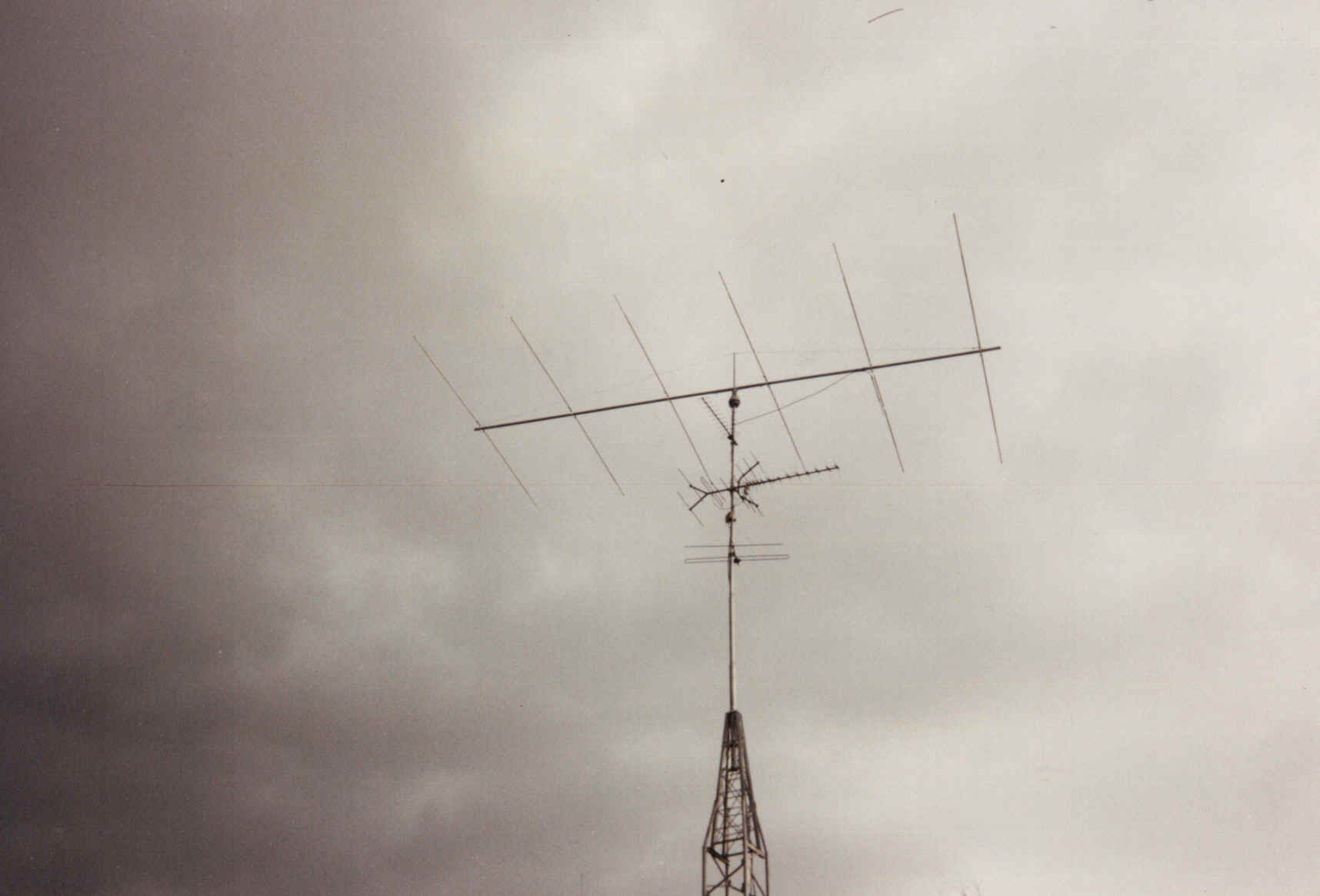

With a boom length
in the order of 12 meters for sure, this is not a small gun!
On the mast as well as on the rotator a high amount of effort is asked.
For the mast you must think in the direction of construction mast (tripod/square),
the rotator must be at least an equivalent of a G1000 for long lasting
results.
But once past these obstacles a high quality DX station is born, Famous
DXers like 13OT001, 47DX101 are always on top of those pile-ups
Conclusion: a 6 elements yagi placed high is a BIG GUN!
Short version Boomlenght 7,3 meters Types HPSD 6 Short.
The first
design is actually to short to be called a real 6 elements monobander.
You can think of the antenna as an optimized 5 elements. The additional
element in front of the Radiating element (J), is responsible for the
high FB & FS and wide SWR coverage. Due to the high FB/ FS and wide
SWR this antenna is ideal for stacking.
Boom
length 7,3m HPSD 6short |
Boom length 11,2m HPSD 6normal | Boom
length 13,0m HPSD 6long |
|
| Design freq: | 27,555
MHz |
27,555
MHz |
27,555
MHz |

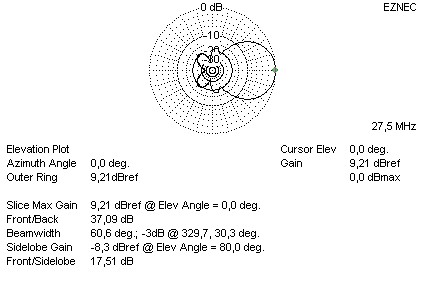

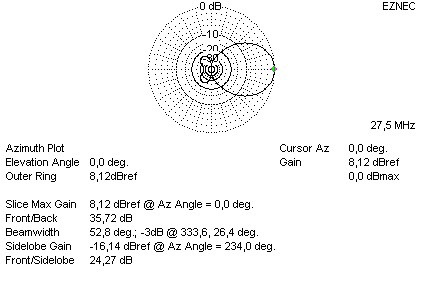

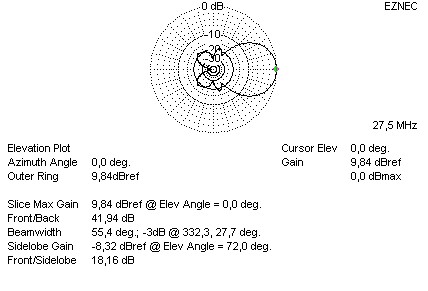

| Gain: | 8,12
dBD (10,24 dBi) |
9,21
dBD (11,45 dBi) |
9,88
dBD (12,02 dBi) |
| F/B: | 35,7
dB |
37
dB |
32,7
dB (F/S 18,11 dB) |
| Beam width: | 53,2
degrees |
60,6
degrees |
55
degrees |
| Band width | 1,7
MHz |
1,0
MHz |
1,0
MHz |
| Element thickness | 22mm |
22mm |
22mm |

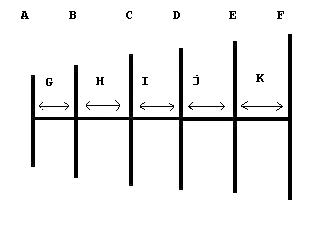

| A= | 4740mm |
4610mm |
4700mm |
| B= | 4880mm |
4840mm |
4760mm |
| C= | 4900mm |
4920mm |
4920mm |
| D= | 5060mm |
5020mm |
5020mm |
| E= | 5390mm |
5220mm |
5160mm |
| F= | 5460mm |
5600mm |
5340mm |
| G= | 2290mm |
3620mm |
3560mm |
| H= | 1530mm |
2920mm |
3380mm |
| I= | 1570mm |
1560mm |
2480mm |
| J= | 560mm |
1100mm |
1580mm |
| K= | 1370mm |
1990mm |
2000mm |
Short ------------------------- Normal
Long

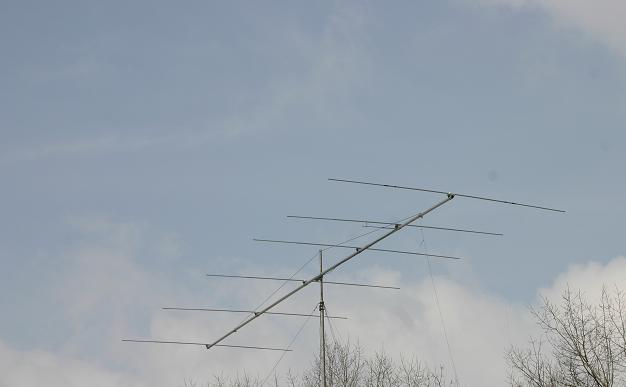

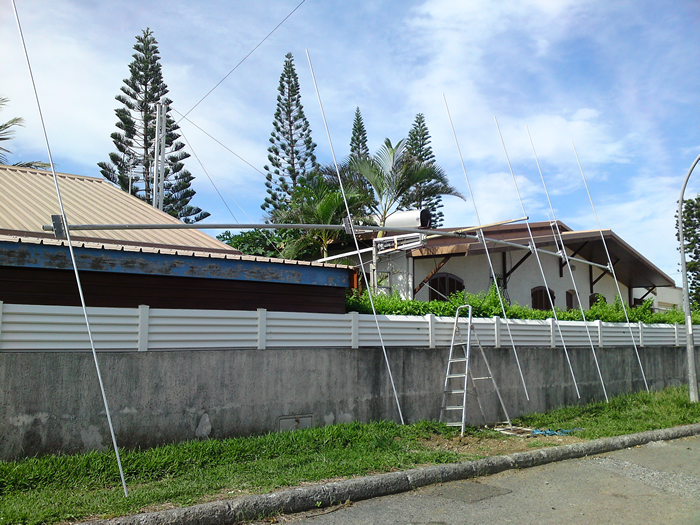

Yagi 6 element, made by Kevin 172 DA 010, with measurements from this
web site, www.DX-antentannas.com
