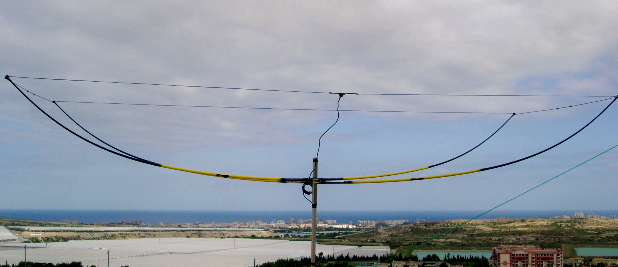

Moxon:

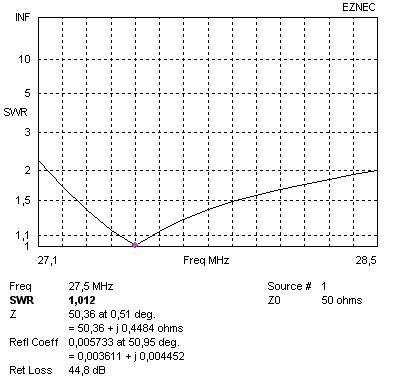

This antenna has a very good F/B and bandwidth (works from 27.200 MHz till 28.600 MHz)
Dimensions
4,0 * 1,5 meter, weight about 1,5kg, gain 5,87dBi.

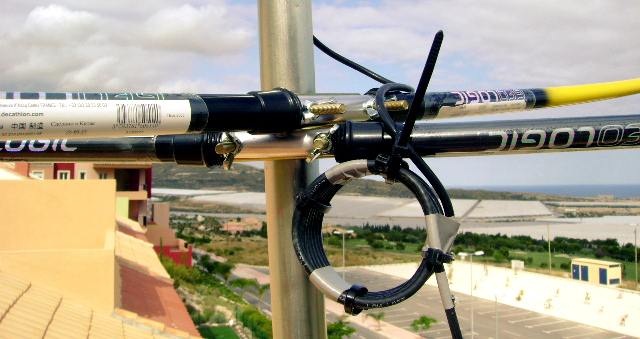

The Moxon
with a RF choke.
You can
build your own on the frequency you want; download MOXGEN
or build according
details below:

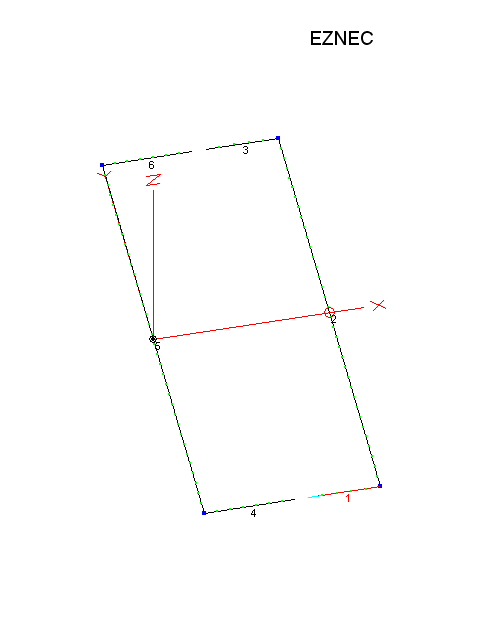

Moxon
50 ohm |
||
| Design freq: | 27,555
MHz |
|
| Gain: | 5,9
dBi |
|
| F/B: | 34
dB |
|
| Beam width: | 77,8
degrees |
|
| Band width | 1,4
MHz |
|
| Wire | 1,5mm2 |
|
| 1 & 3 = | 598mm |
|
| 2 & 5 = | 3.961mm |
|
| 4 & 6 = | 739mm |
|
| distance
between wire 2 &5: |
1.444mm |

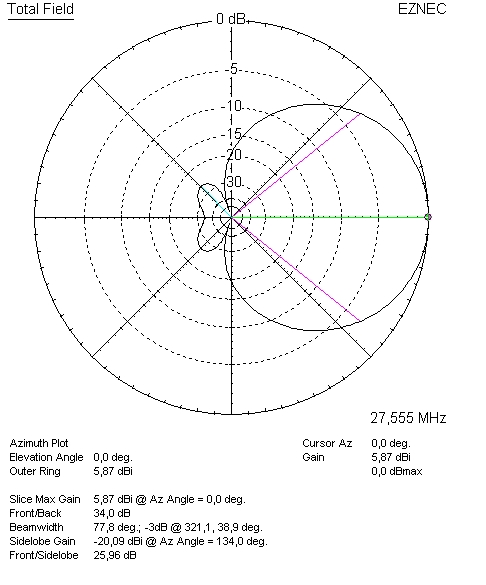

Azimuth Plot ----------------------------------- Elevation Plot on 20m

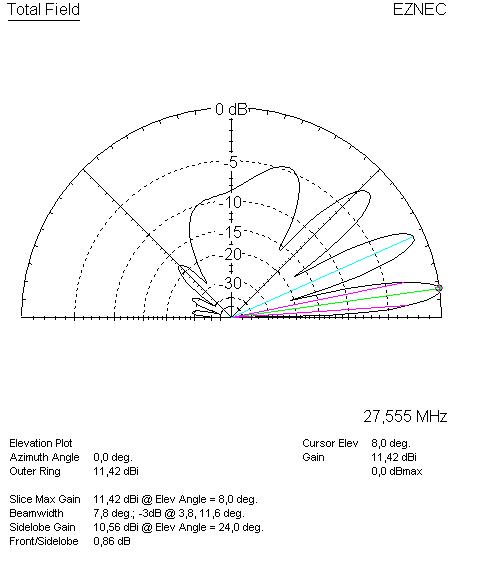

Elevation
Plot on 20m
If you put
this antenna on for example 20 meter height, you will be surprised about
the results.
Because of the size and light construction this antenna is also ideal
for portable use.
We can
offer you this antenna in a complete antenna kit
For more information send us an e-mail or look on www.dx4.us.
