Hentenna – The Japanese 'Miracle' Wire
Hentenna
50 ohm |
||
| Design freq: | 27,555
MHz |
|
| Gain: | 4,75
dBi |
|
| F/B: | 18,82
dB |
|
| Beam width: | 88,6
degrees |
|
| Band width | 0,5
MHz |
|

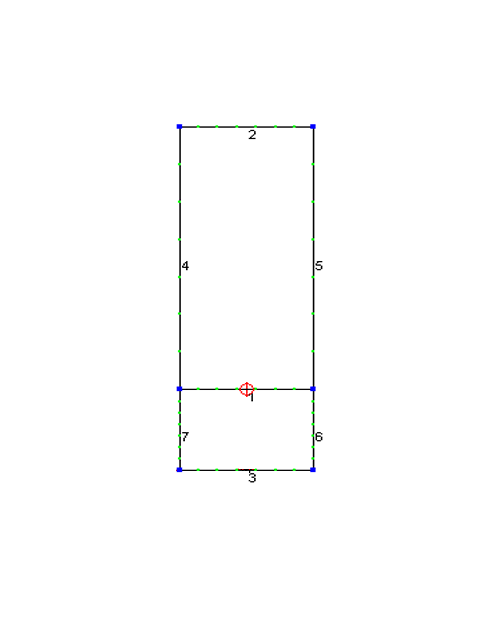

| Wire | 1,5mm2 |
|
| 1= | 1.600mm |
|
| 2= | 1.600mm |
|
| 3= | 1.600mm |
|
| 4= | 4.264mm |
|
| 5= | 4.264mm |
|
| 6= | 1.175mm |
|
| 7= | 1.175mm |

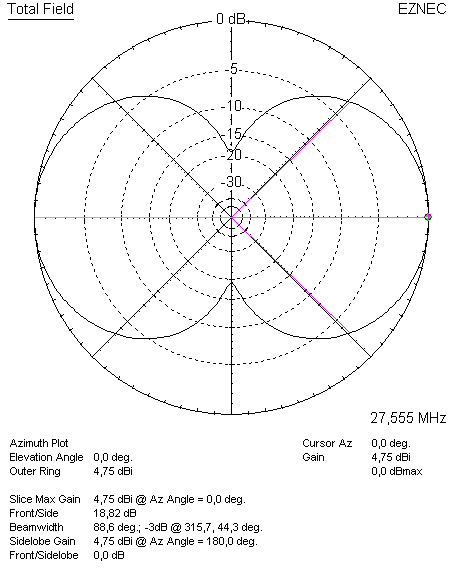

Azimuth plot -----------------------------------------

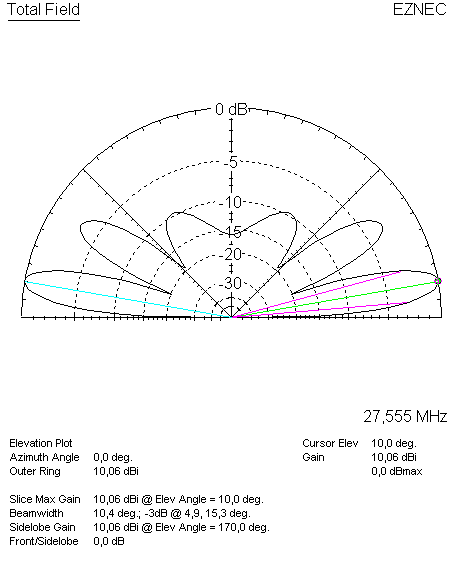

Elevation plot on 12 meters height

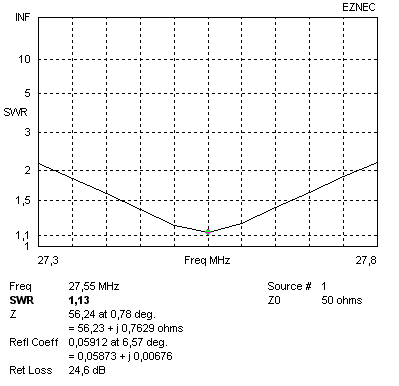

The SWR
can be changed by changing the height of wire 1 in the loop.
