Sky-Rex (Quagi) :

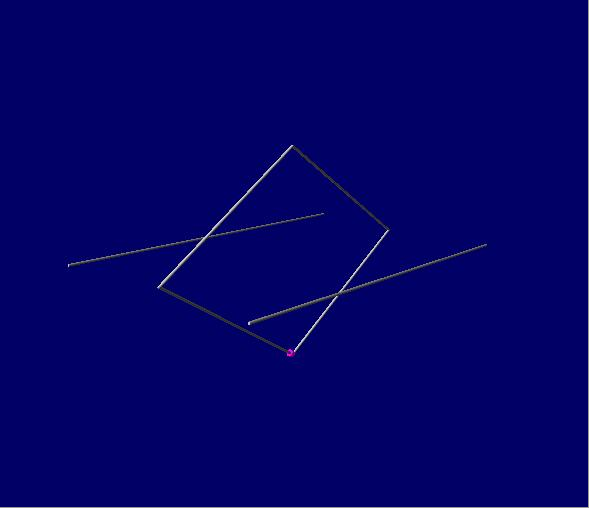

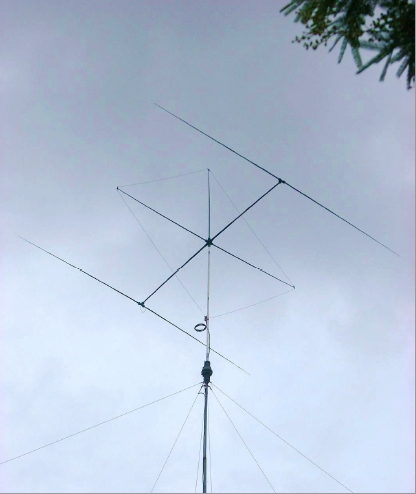

These pictures
and diagrams show the result of the sky-rex antenna
Freq.
(MHz) |
Gain
(dBi) |
FB
(dB) |
SWR |
|
27.000 |
8,49 |
10,68 |
1:3.7 |
|
27.100 |
8,64 |
12,72 |
1:3 |
|
27.200 |
8,76 |
15,19 |
1:2.4 |
|
27.300 |
8,86 |
18,38 |
1:1.9 |
|
27.400 |
8,93 |
22,8 |
1:1.6 |
|
27.500 |
8,99 |
28,11 |
1:1.3 |
|
27.600 |
9,03 |
25,53 |
1:1 |
|
27.700 |
9,07 |
20,64 |
1:1.4 |
|
27.800 |
9,08 |
17,22 |
1:1.8 |
|
27.900 |
9,08 |
14,71 |
1:2.5 |
|
28.000 |
9,05 |
12,71 |
1:3.3 |
Below the
SWR the 2:1 SWR bandwidth is about 500 Khz

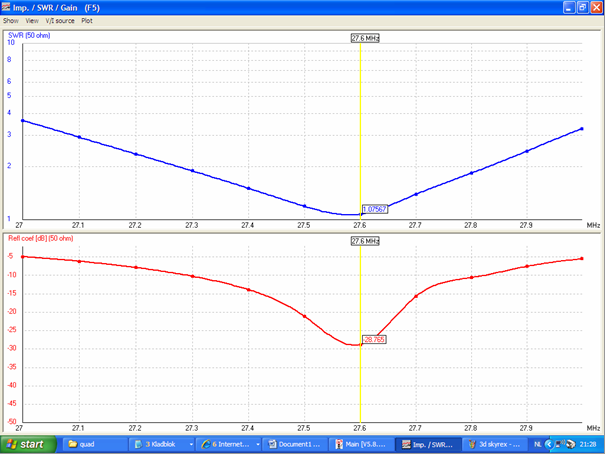

SWR

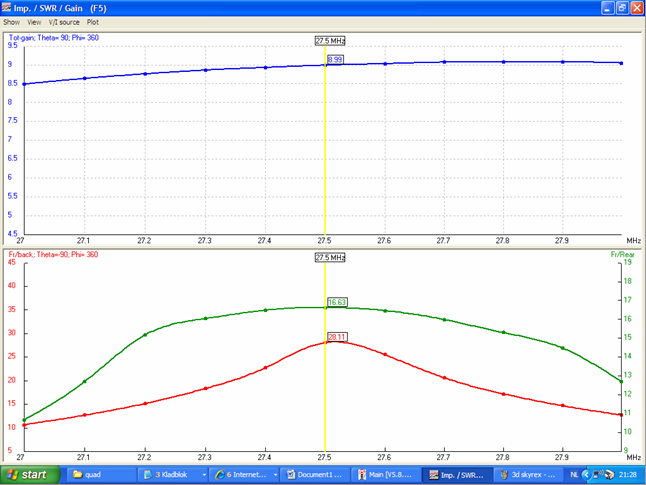

Imp/SWR/Gain
Sky-Rex

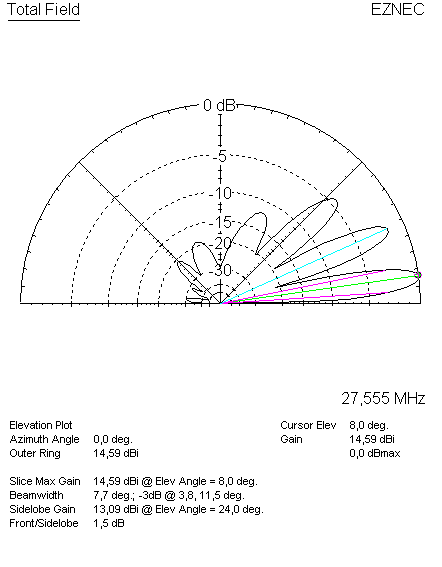

elevation plot on 20m height, take off angle is 8 degrees.
The same take of angle like other beam antennas on 20m
height.
More information
regarding this antenna can be found on this web site:
https://picasaweb.google.com/1SD019.alex/SkyrexBeam
Source: The measurments are provided by the manufacturer Alex 1SD019
