Signal engineering ultimate 4 elements Yagi

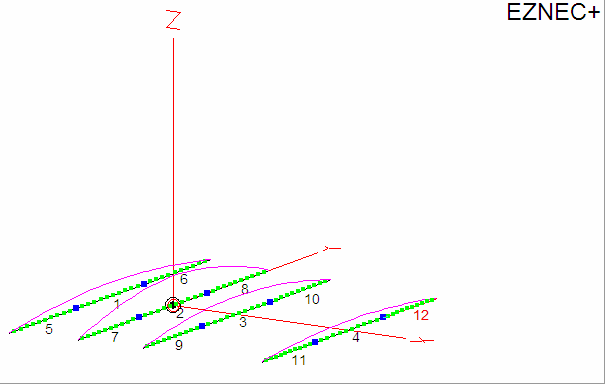

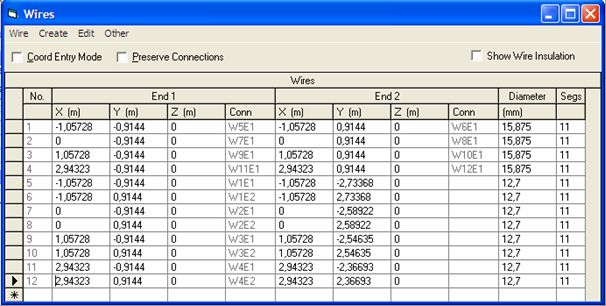

Input list EZNEC

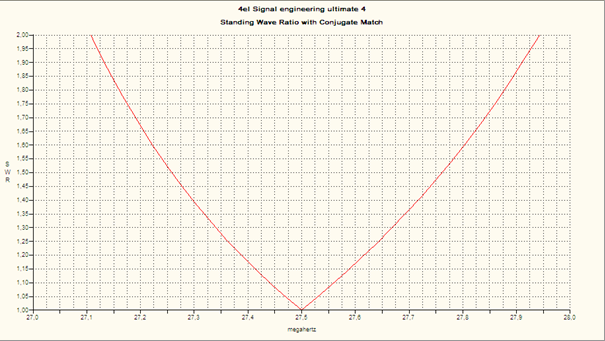

SWR

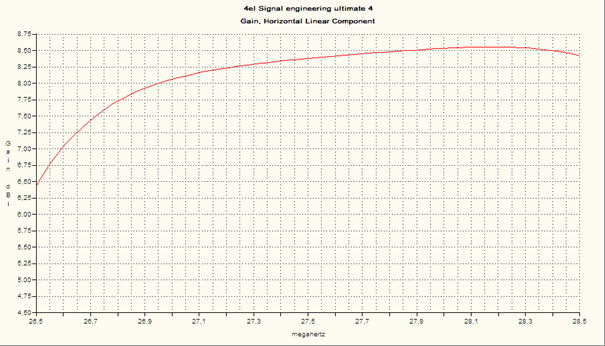

Gain versus frequency

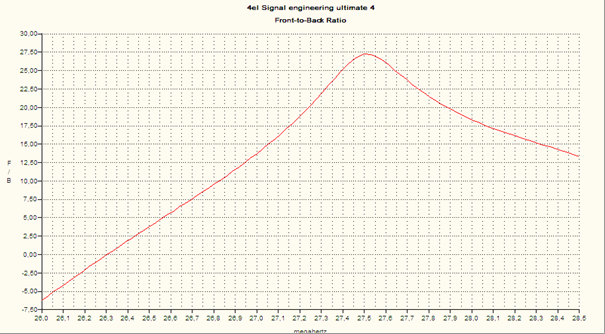

FB versus frequency

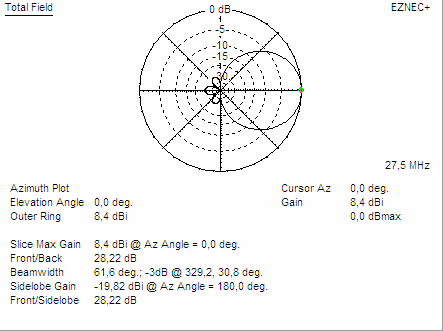

Azimuth plot

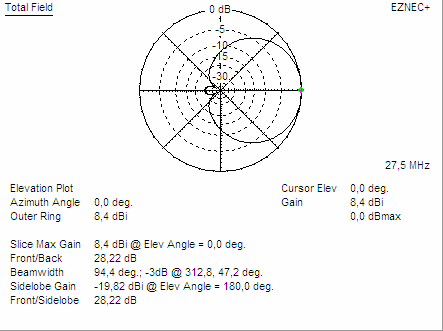

Elevation plot


Source:
http://signalengineering.com/ultimate/4_element_yagi.html
