We all want the best mobile antenna, preferably this has to be the
smallest one as well.
As usual this is never the case. Luckily for us there is a great variation
in mobile antennas in length, looks and again price.
You could say there are two kinds of mobile antennas. The one who depends
on coaxlenght for "grounding" , these can be used b for example
on polyester boats. By changing the length of the coax cable the SWR
The second type uses the metal to which the antenna is connected as
its counter system (grounding).
We know that almost all antennas are based from the dipole, this is
the case as well with the mobile antenna.
You can see the vertical mobile antenna as one half of the dipole, the
other half is the car itself or the outherbraid of the coax cable.
Since the length often is shorter then one half of a dipole (¼
wavelength), the length missing has to be made up with a coil. (the
coil, makes the antenna electrically"longer")
But with a coil comes losses although they are not large, it is still
a factor to deal with.
These can be kept to a minimum by choosing the mobile antenna which
can handle the highest power. This will mean that this is the larger
coil (diameter) and therefore has the lowest loss.
Another important factor is where the coil is put. The best placing
being right at the top of the mobile on a second place we have the mobile
antenna with the coil in the middle at last the one with the coil at
the bottom. There is only one problem...no one wants to have a coil
on top and the mechanical construction will be quite weak as well
Sadly all mobile antennas have no Gain, only loss, logical since the
length of a mobile antenna is to small to create any.
Also the often seen additional remarks, like this is a 5/8 wave length
mobile antenna!!, well...not true of course, If a mobile antenna is
1 meter long it is 1/11 wavelength simple as that.
So the best mobile antenna is indeed the longest antenna. When you decided
what your maximum length and still have a few models to choose from,
then you should go for the antenna which can handle the highest power.
And preferably with a coil on top.
The position of the antenna is preferably the highest central point.

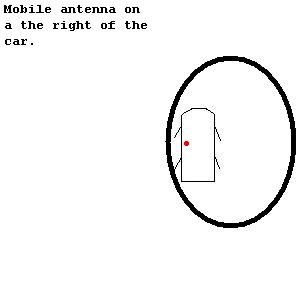

When used on a car such an antenna has some directivity when it is placed
on the back of the car. The drawings below will explain: (a quaterwave
length vertical highly depends on ground)
At last, don't think you are lost with only a mobile antenna. In December
2005 I worked stations from 43 division who were using only 20 watts
and a mobile.
(almost at the bottom. of the solar cycle)
So just think what is possible with perhaps a bit luck, and patience
when the sunspots are on an high level...
There are a few guys who have over a hundred DXCCs on 11 meter with
And there are guys who have a real good DX-spot for example on a hill
near water and use the mobile set-up there for DXing, with better results
than at home.
